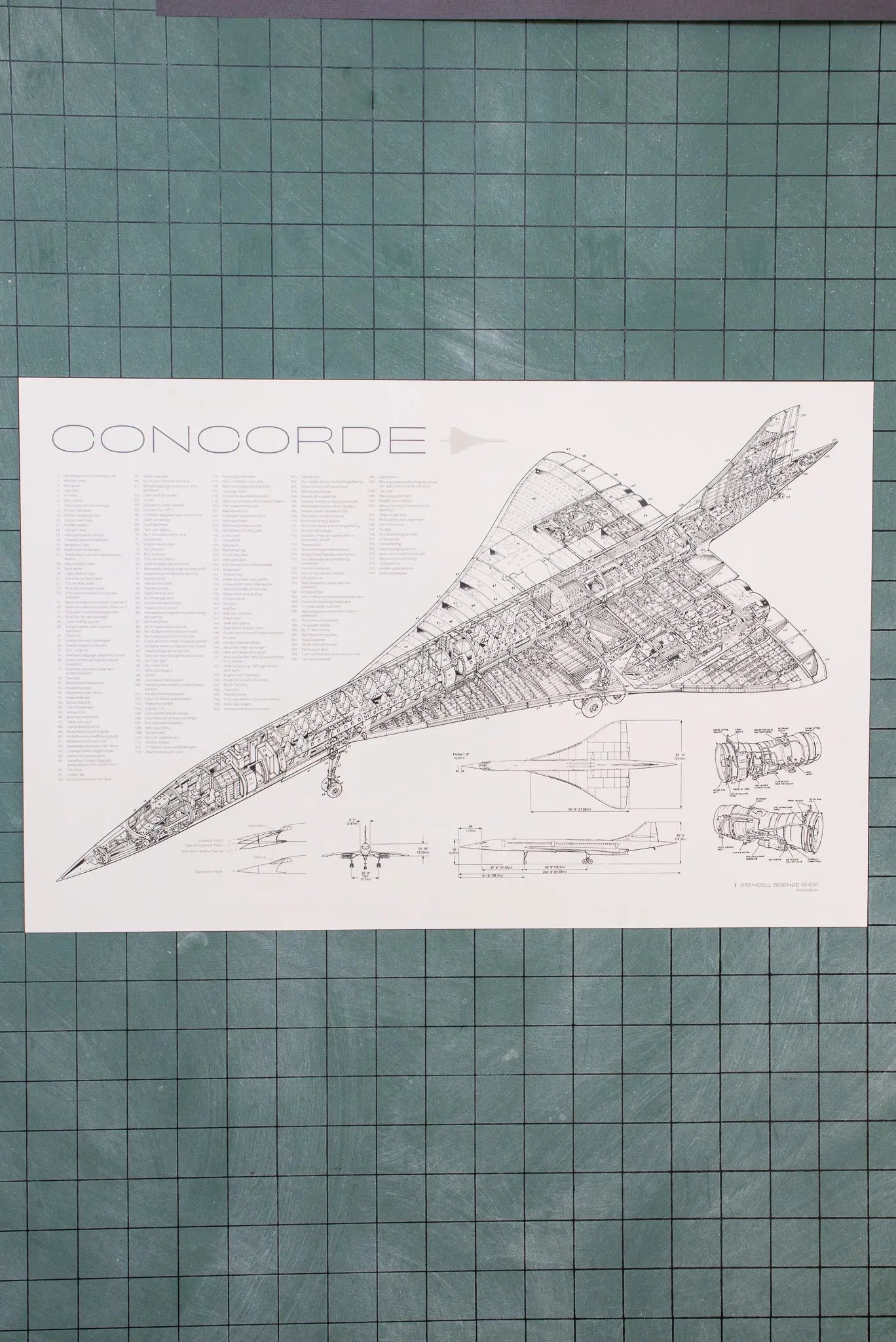

Concorde Supersonic Airliner Schematic Chart

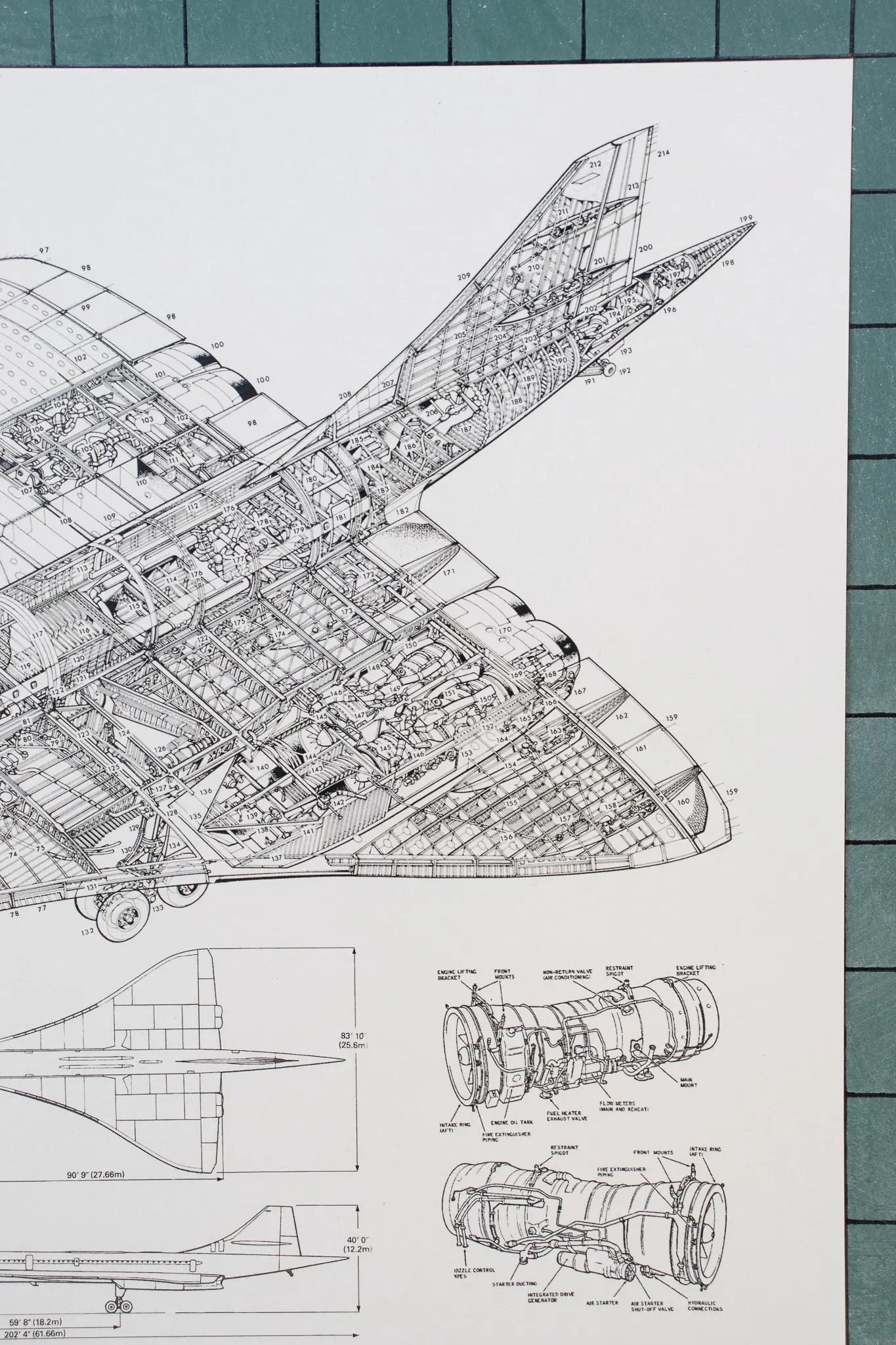

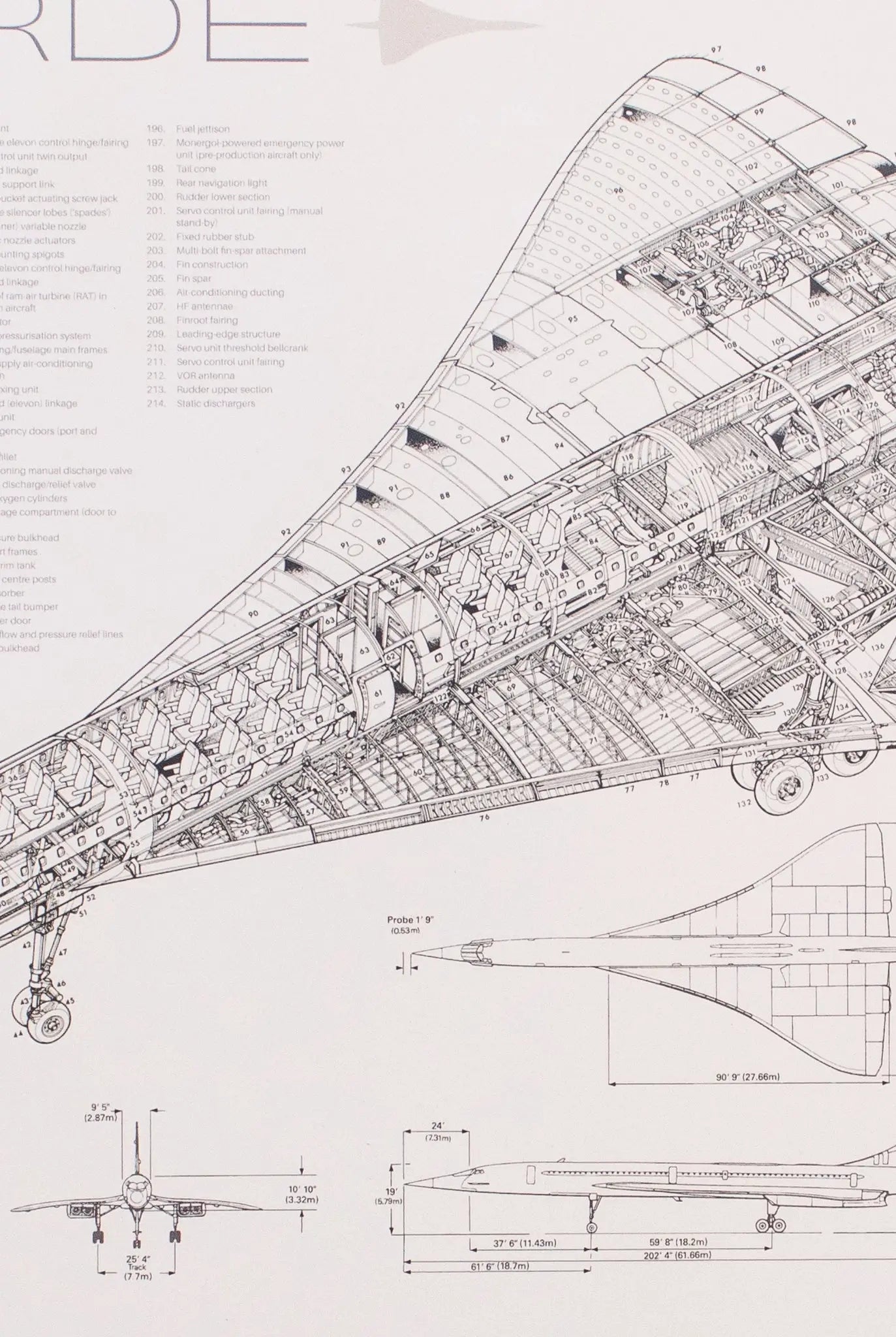

A cutaway diagram identifying 200+ features of the Concorde supersonic aircraft, the fastest commercial airliner ever built.

Also includes dimensions, droop nose positions, and views of the Rolls-Royce engines.

Chart size: 11 x 17"
Ships rolled in a tube
